Type of docker network

None

	docker run --network none nginx

• Container doesn’t connect to any network
• It can’t reach outside world and vice versa

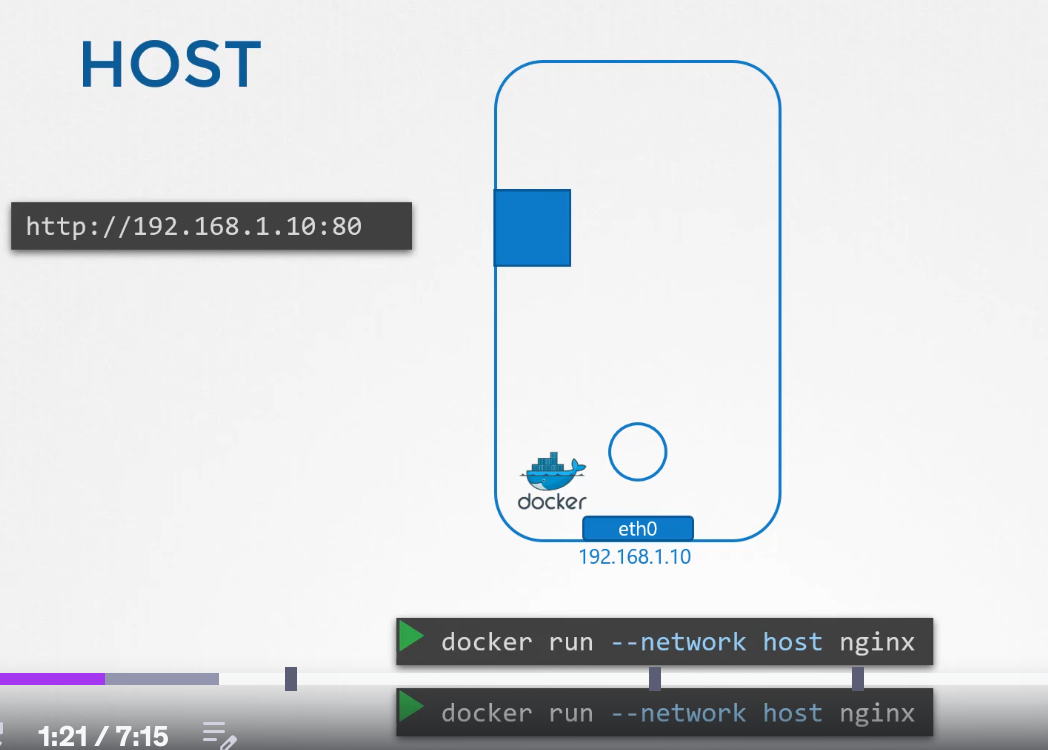

Host

• Container’s network is attached to host
• There’s no network isolation between the host and the container
• Container starts at port 80 –> available at port 80 of host
• If there’s another container of host network starts on port 80-> won’t work

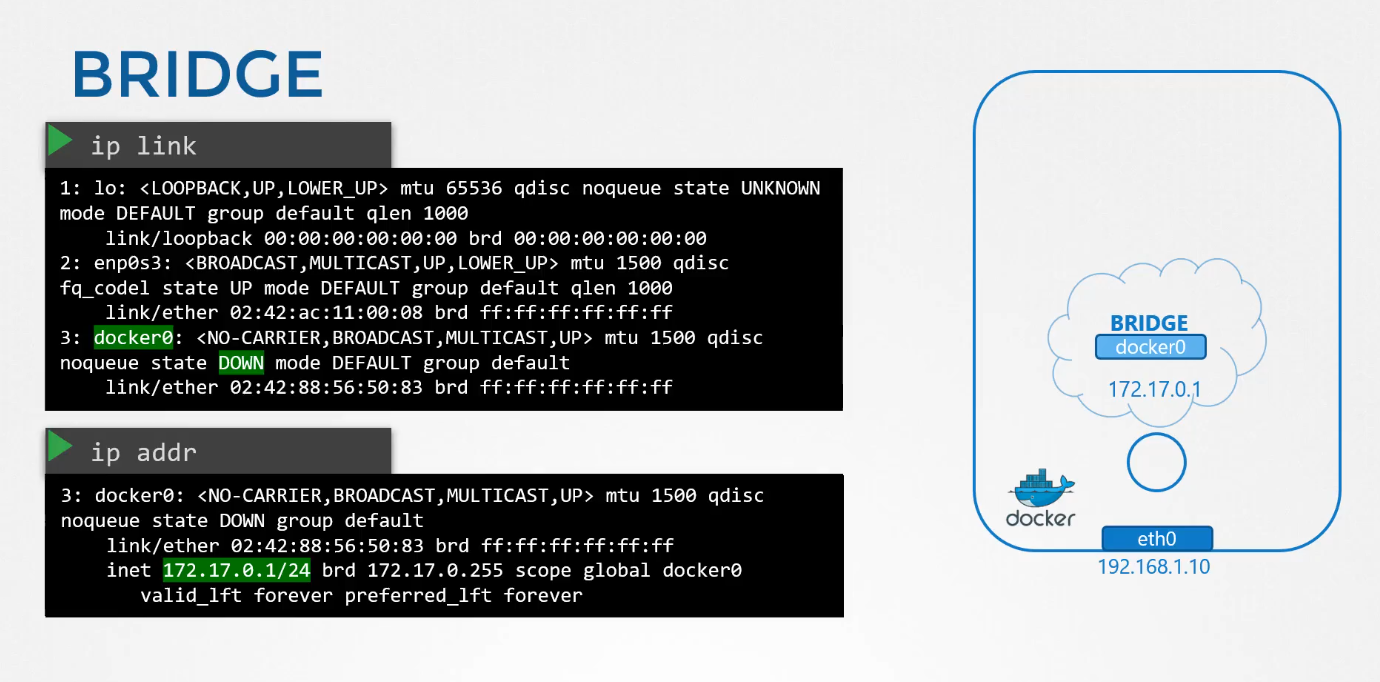

Bridge

• Isolated network within the host, by default with ip 172.17.0.0
• Each container connects to this gets an internal private ip connects to this bridge
• The interface for this bridge network is docker0 , created by ip link add docker0 type bridge

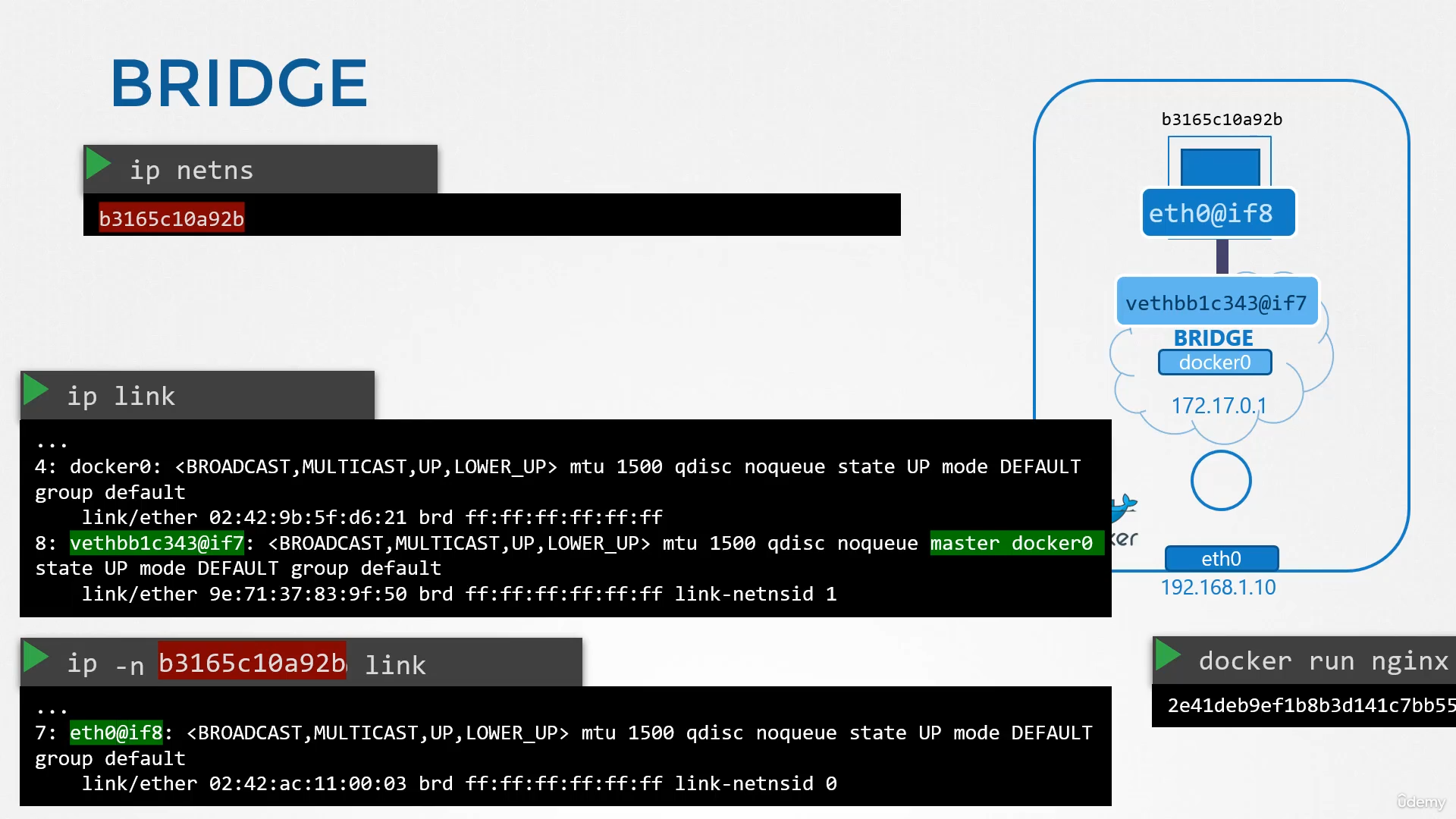

• When containers are created, network ns is created
• ip netns: to show the id of the container’s network namespace
• on host: ip link show an interface assigned to the bridge network
• in the container: ip link shows another interface
• These 2 interfaces are connected in pair

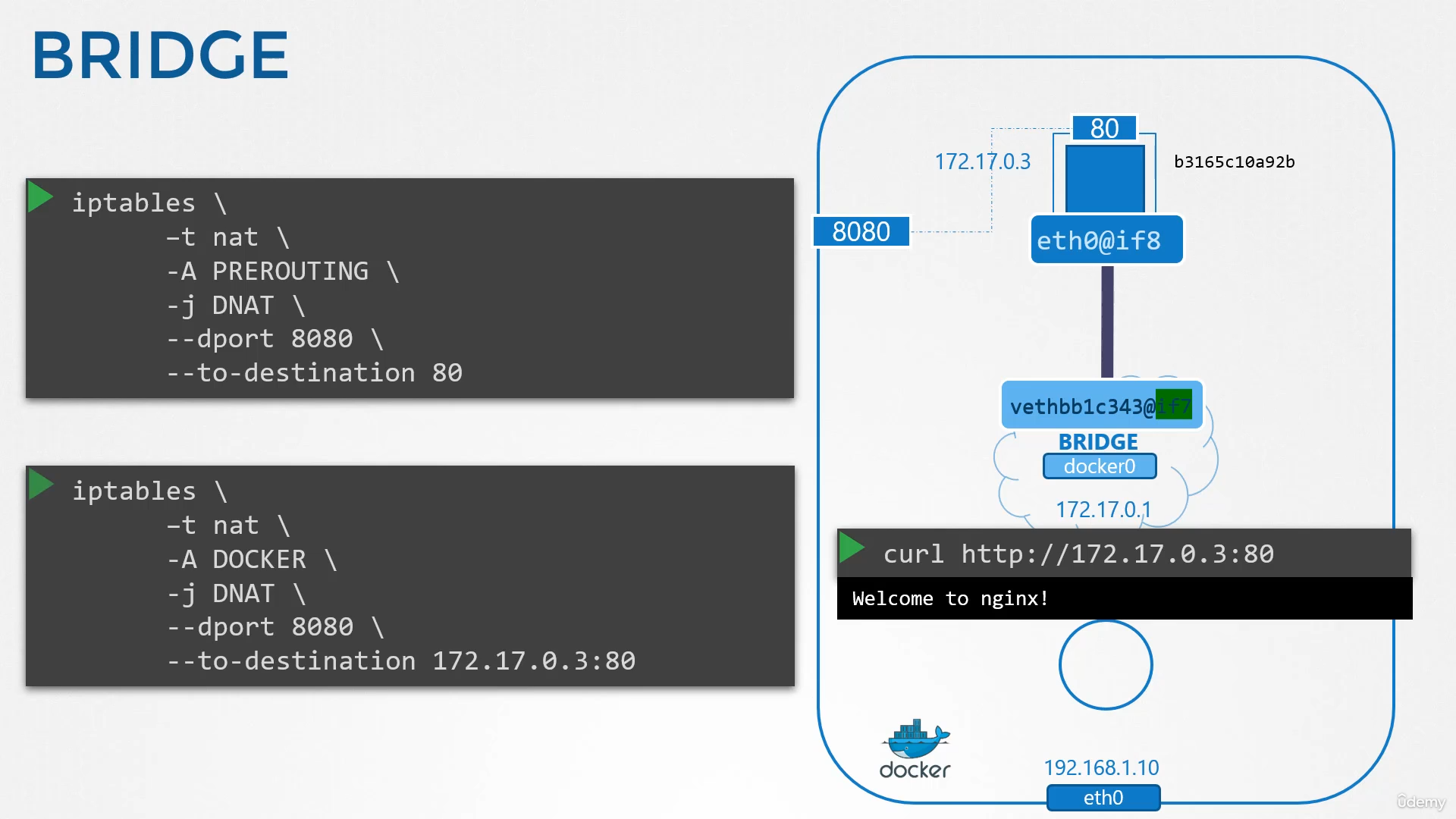

Port Forwarding

• Only host can access 172.17.0.3:80 because it’s isolated
• For users to use access the app runs by the container: -p 8080:80 -> map 8080 of host to 80 of container

• Behind the scene, docker uses NAT rule to support port fowarding

• To list rule: iptable -nvL -t nat
