Certificates

1. Server cert: configured on the server
2. Client cert: configured by client
3. Root cert: configured by CA server

   [!Note] Private key have key in them

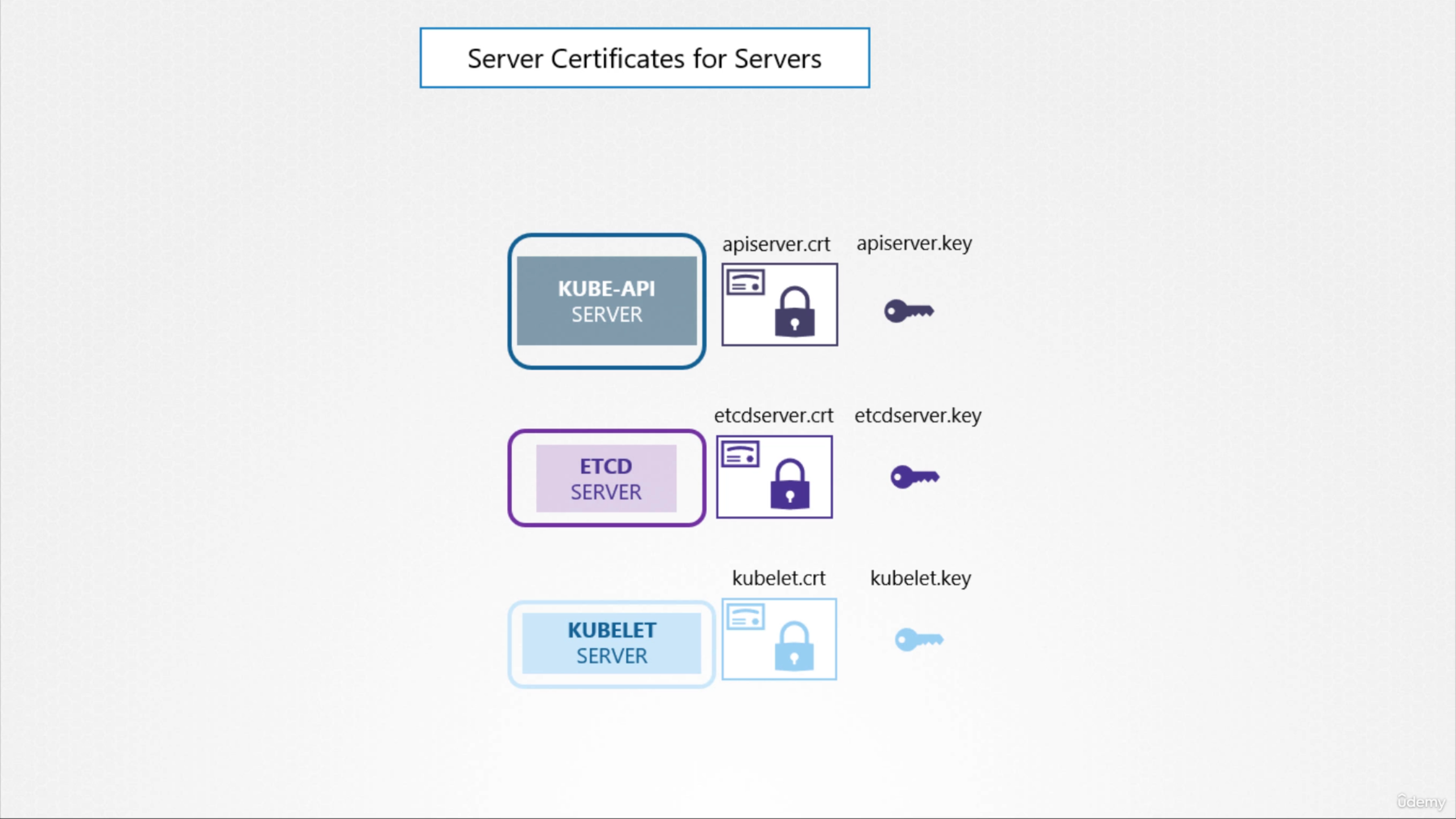

Server Certificate

• Kube-api server: crt and key, exposes https api service
• ETCD server: crt and key
• Kubelet server: on worker node, exposes an https api that the kube-api server talks to

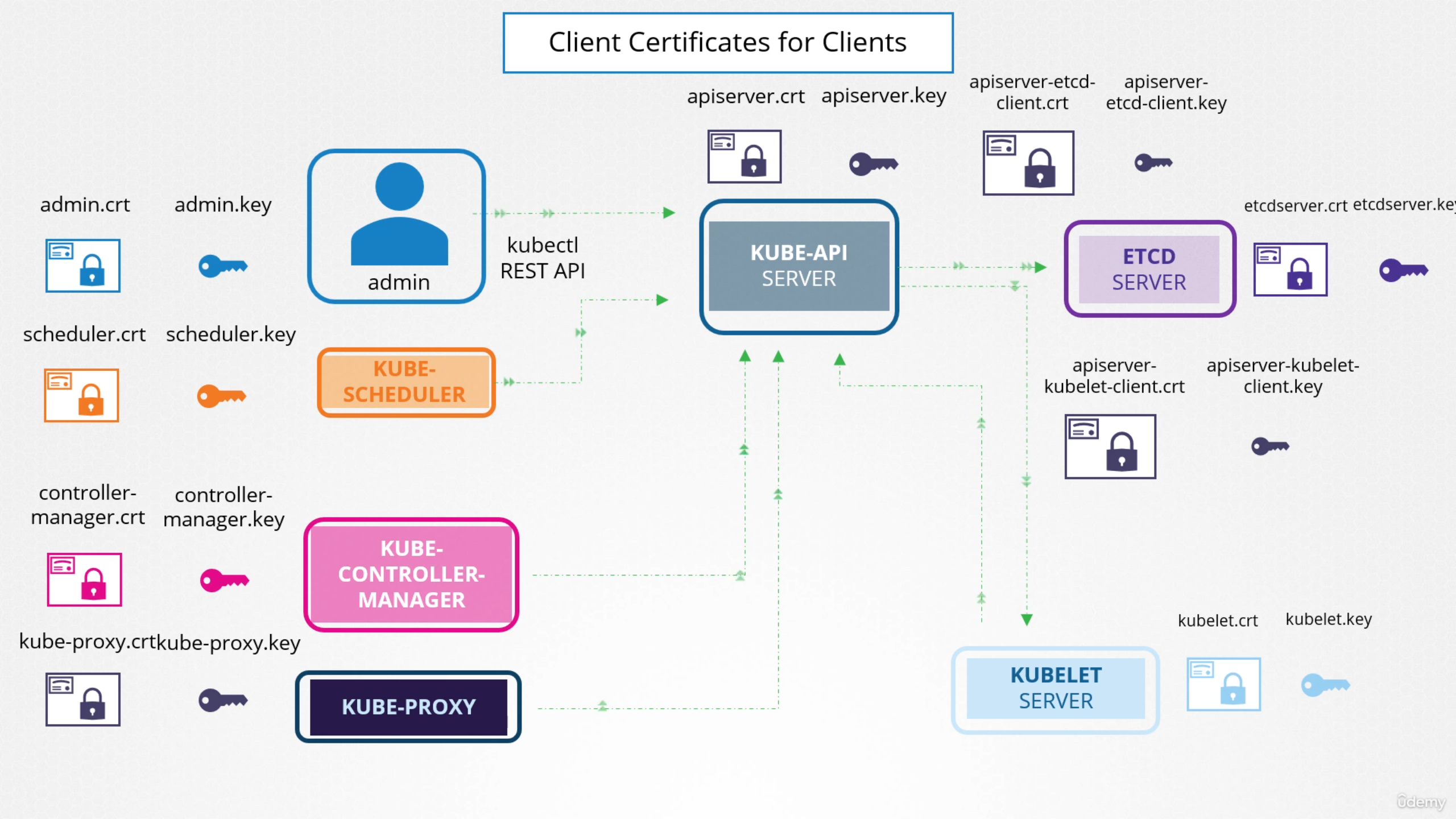

  Client Certificate

• Admin: needs crt and key pair to authenticate to the kube-api server
• Kube-Scheduler: is client to kube-api server. It talks to kube-api server to look for pods that need scheduling .
• Kube-Controller-Manager: is also a client to kube-api server
• Kube-proxy: also a client to kube-api server
• Kube-api-server: is the only client to the ETCD server
• Kube-api-server: also talk to kubelet on each individual node. That’s how it monitors the worker’s node.

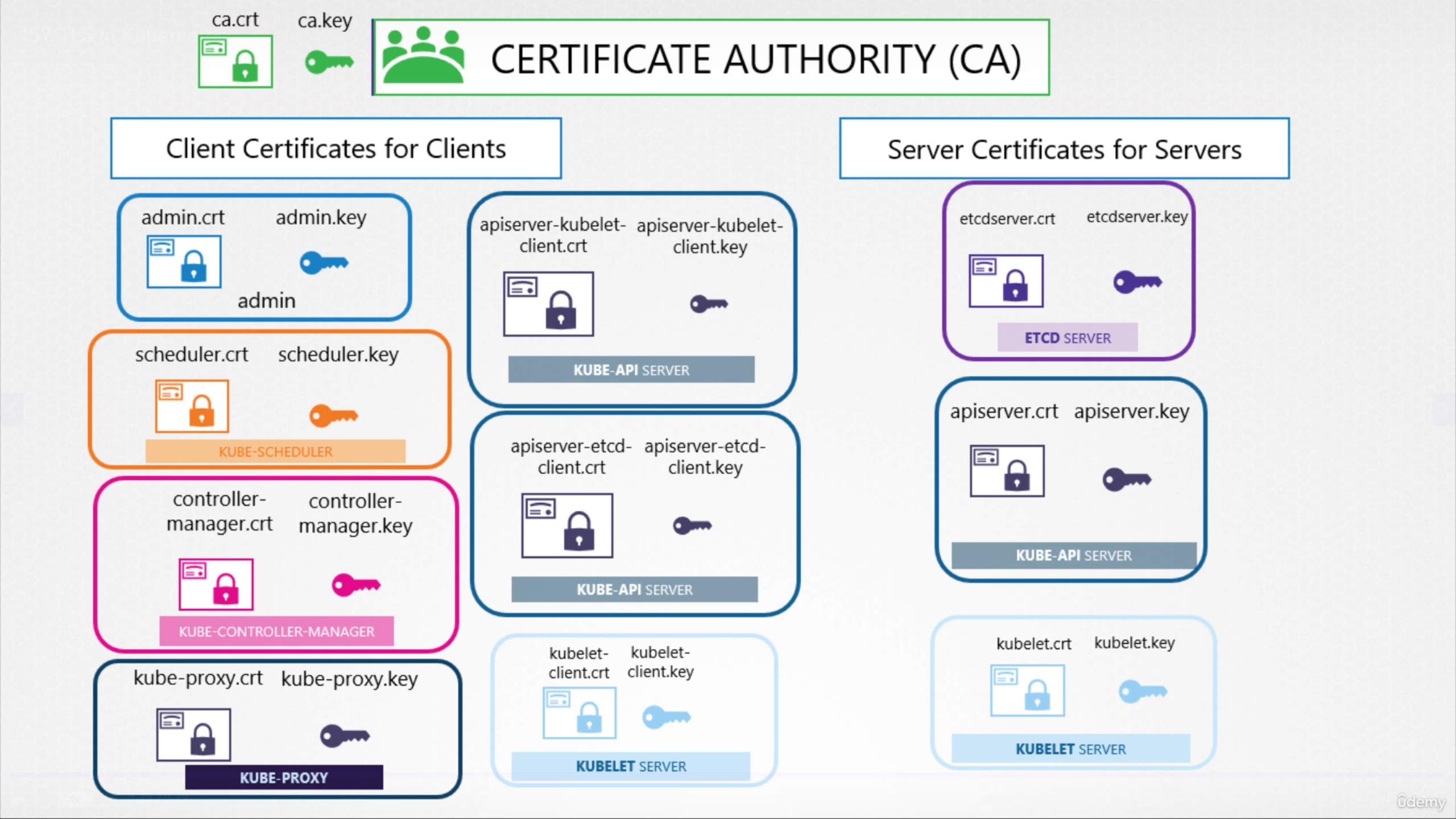

CA

• You’re required to have at least one CA for your cluster
• There could be one CA for ETCD, one for the rest of the cluster

Certificate Creation

Certificate Authority (CA)

1. Generate keys

   openssl genrsa -out ca.key 2048 --> this will give ca.key


2. Certificate Signing Request: all signing details w/o signatures

   openssl req -new -key ca.key -subj "CN=KUBERNETES-CA" -out ca.csr


3. Sign certificates

   openssl x509 -req -in ca.csr -signkey ca.key -out ca.crt

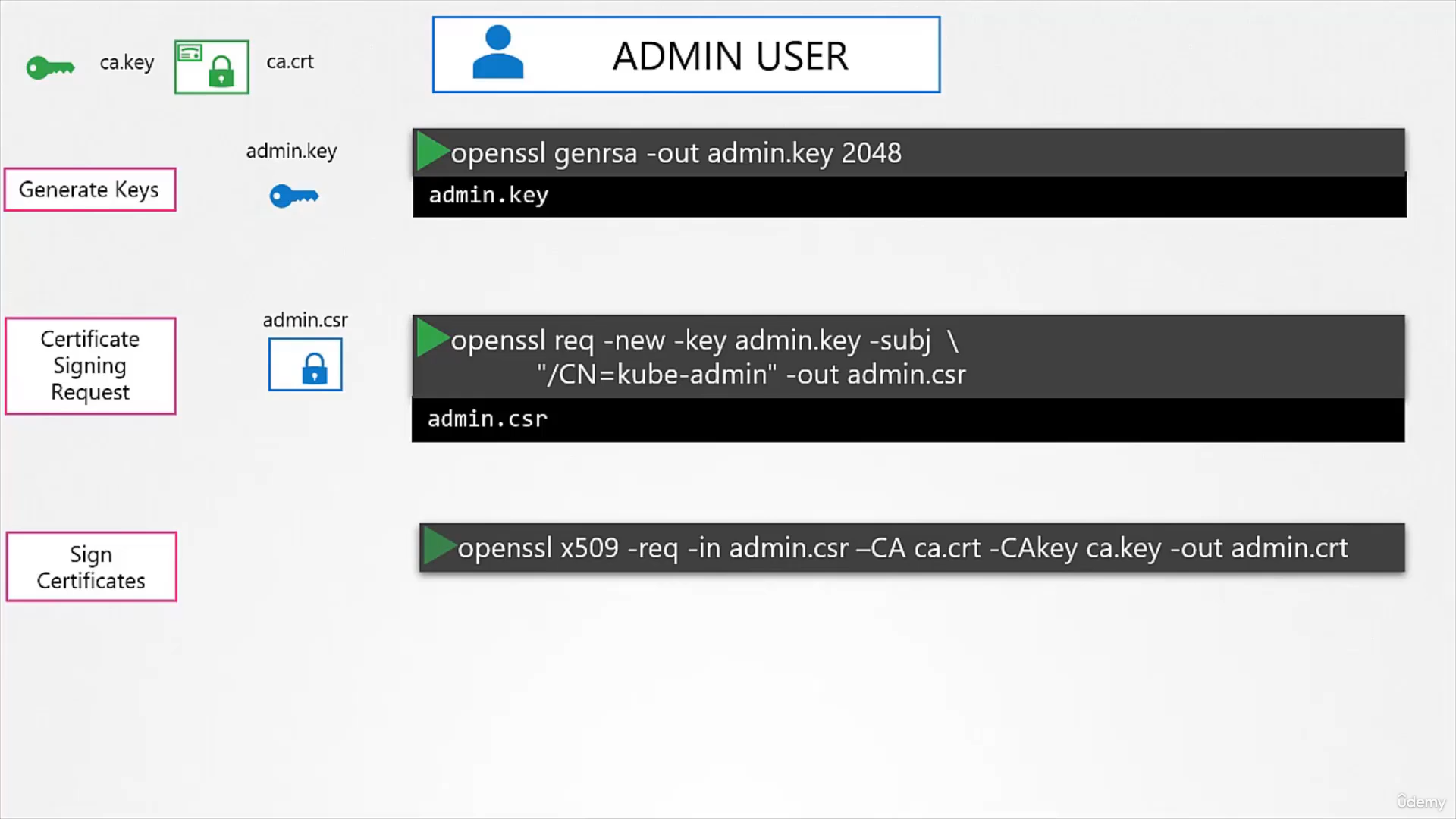

Client Certificate

Same procedure, the only difference is when doing Sign Certificates, you specify CA cert and CA key

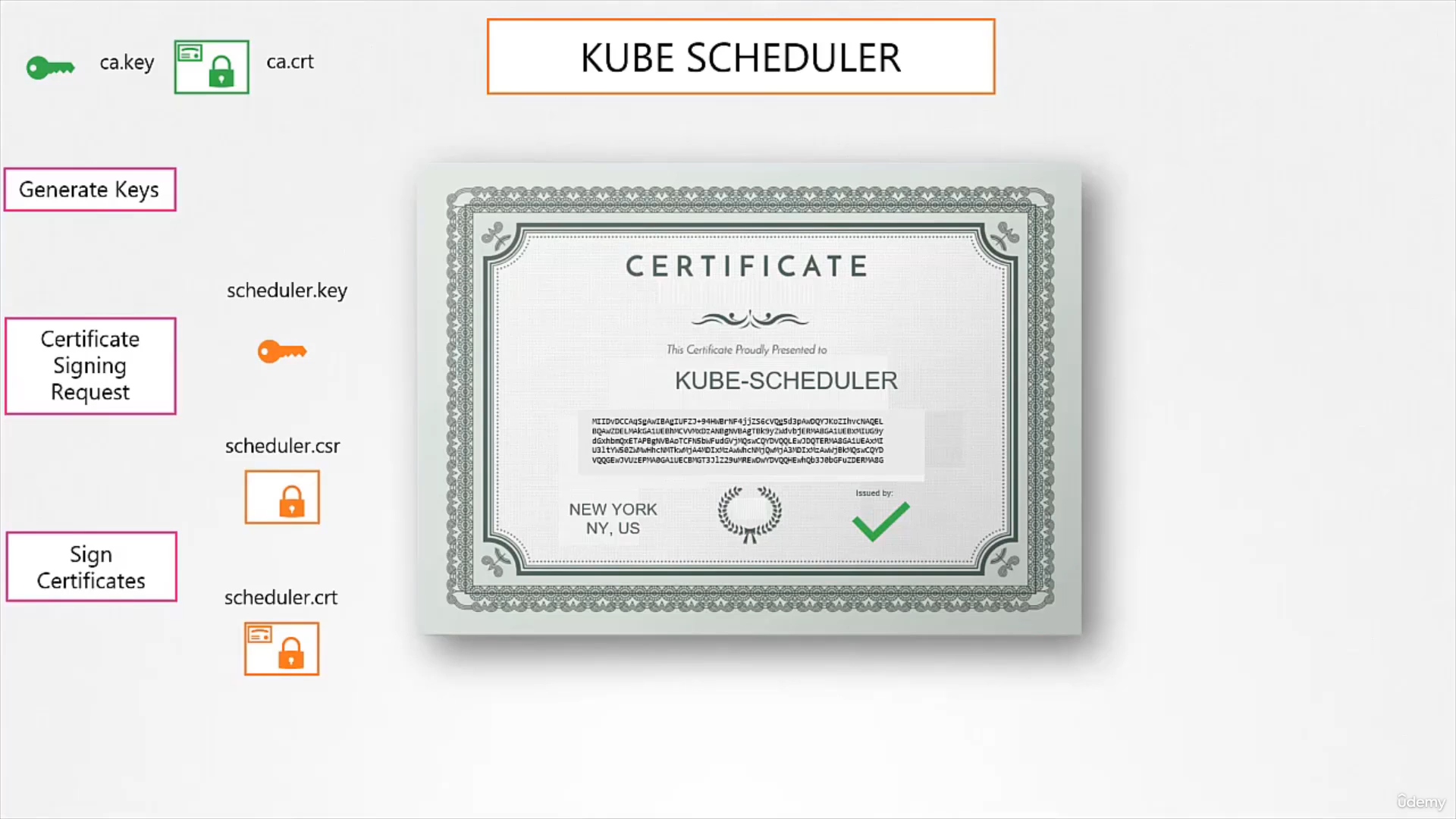

Kube Scheduler

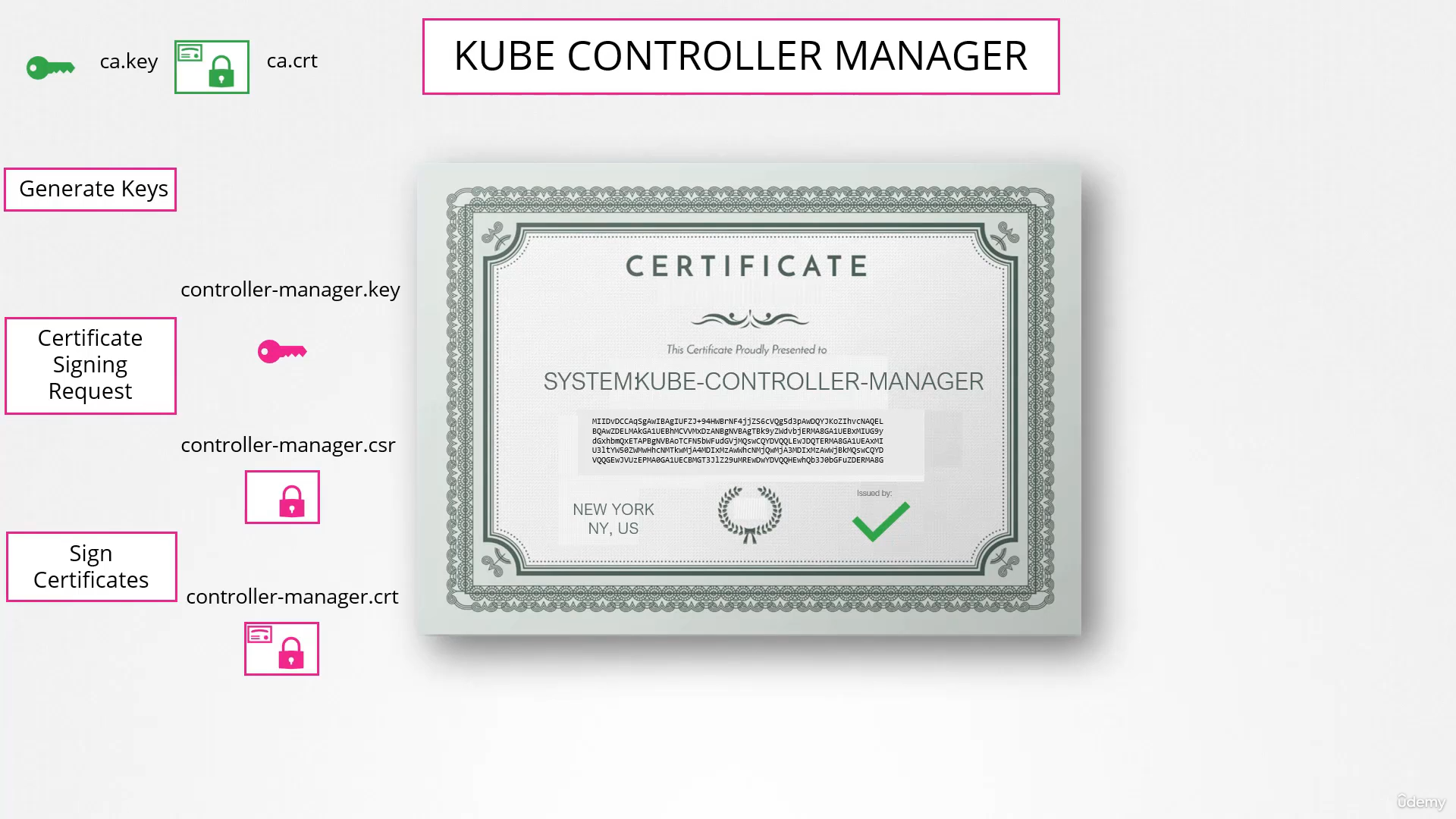

Kube-Controller-Manager

Kube-proxy: similar to controller mnger and admin

[!Note] For client to be able to be verified using certificates, all components of the cluster needs a copy of the public cert of the CA

Kubelet (being client talking to kubeapi-server)

• Same with system’s component: name starts with system:node ![](../../../Pasted%20image%2020250607170812.png)

  Server Certificate

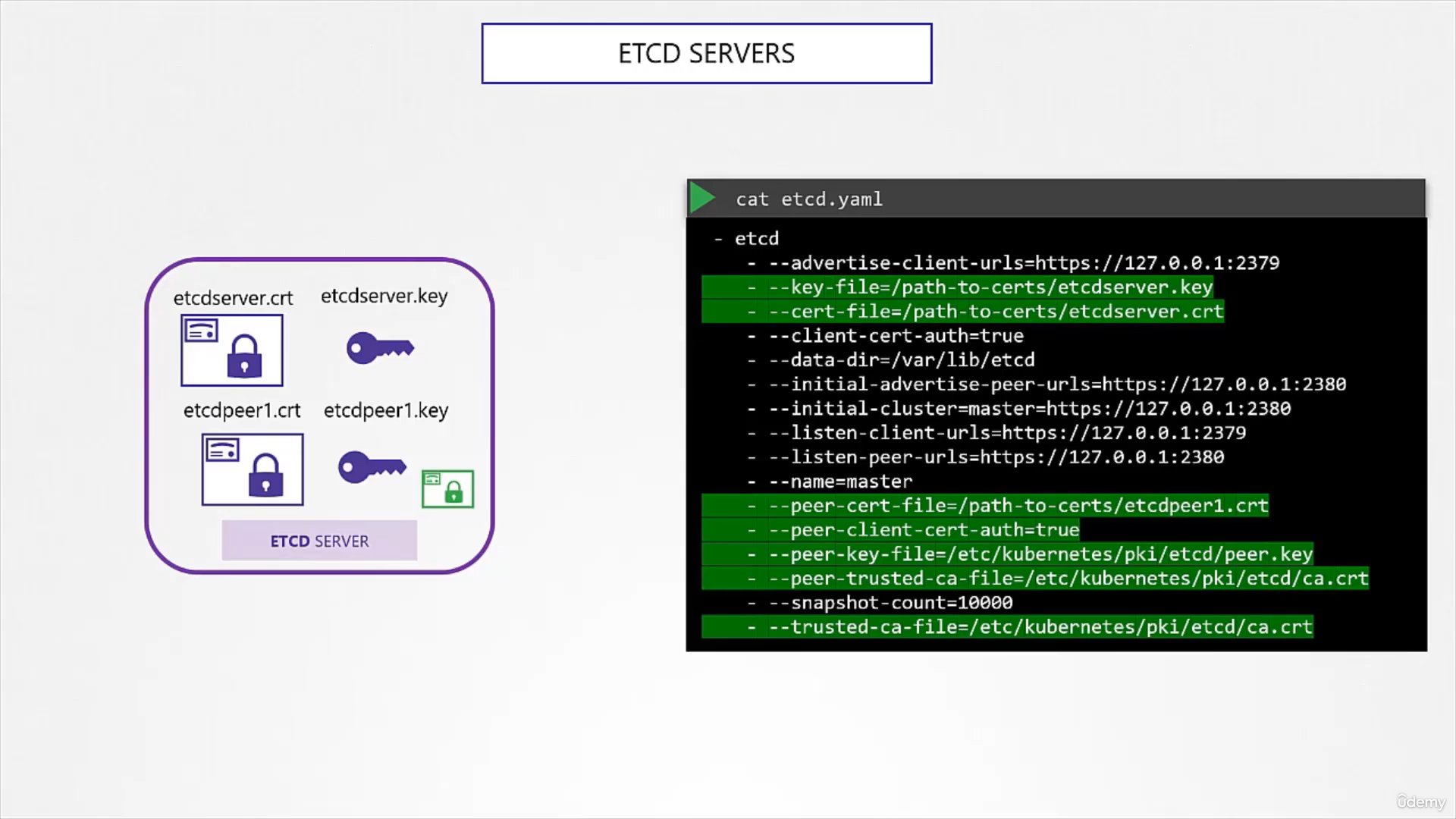

  ETCD server

• Besides being a server, they also need peer server for HA
• Key, Crt, and trusted-ca-file (public root cert.) must be specified

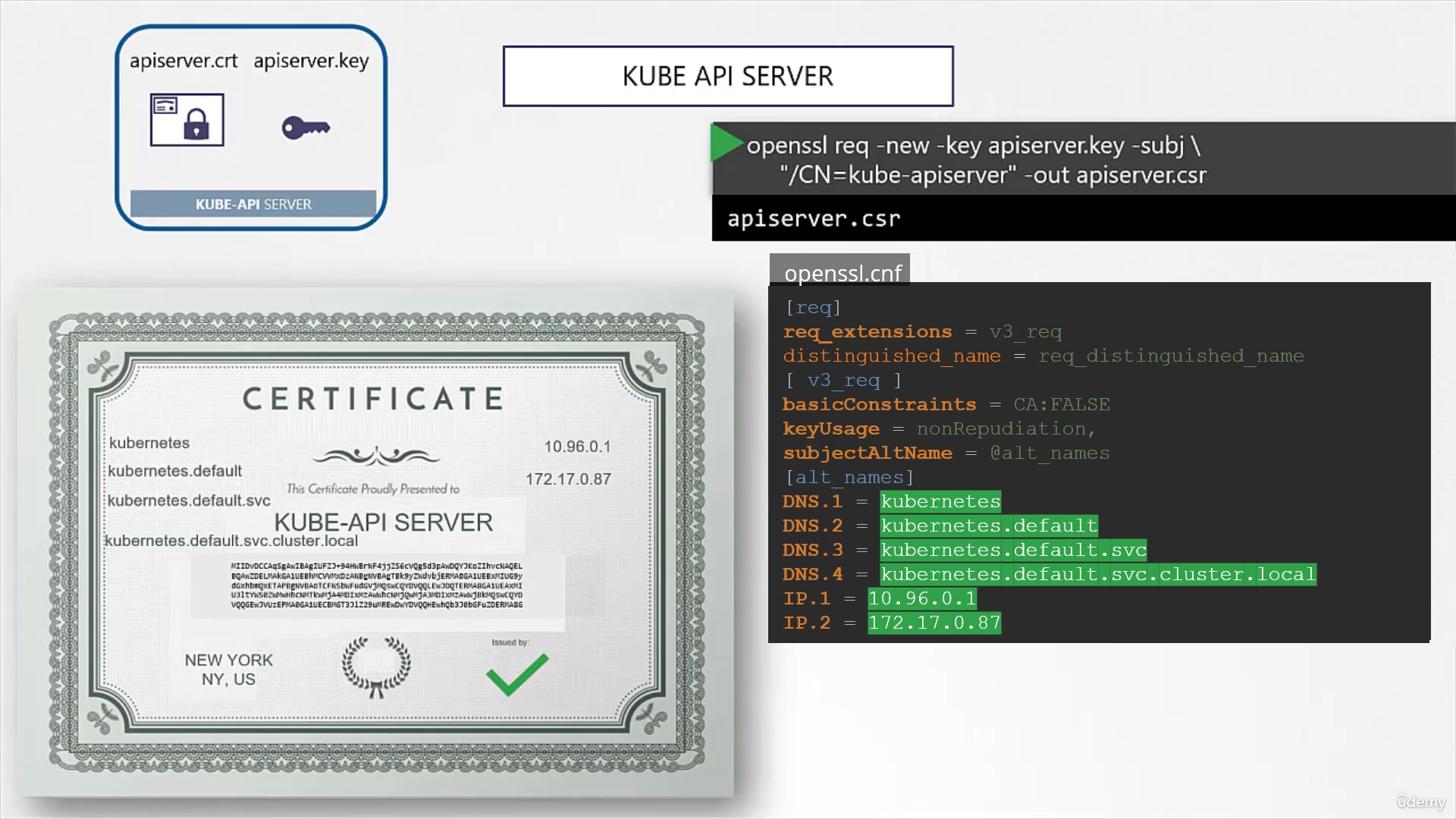

kube api server

• All the aliases must be configured in the cert by passing in -config openssl.conf in generating certificate signing request

  openssl req -new -key apiserver.key -subj "CN=kube-apiserver" -out apiserver.csr\
  -config openssl.cnf




• Finally, sign the cert:

  openssl x509 -req -in apiserver.csr \
  -CA ca.crt -CAkey ca.key -out apisever.crt

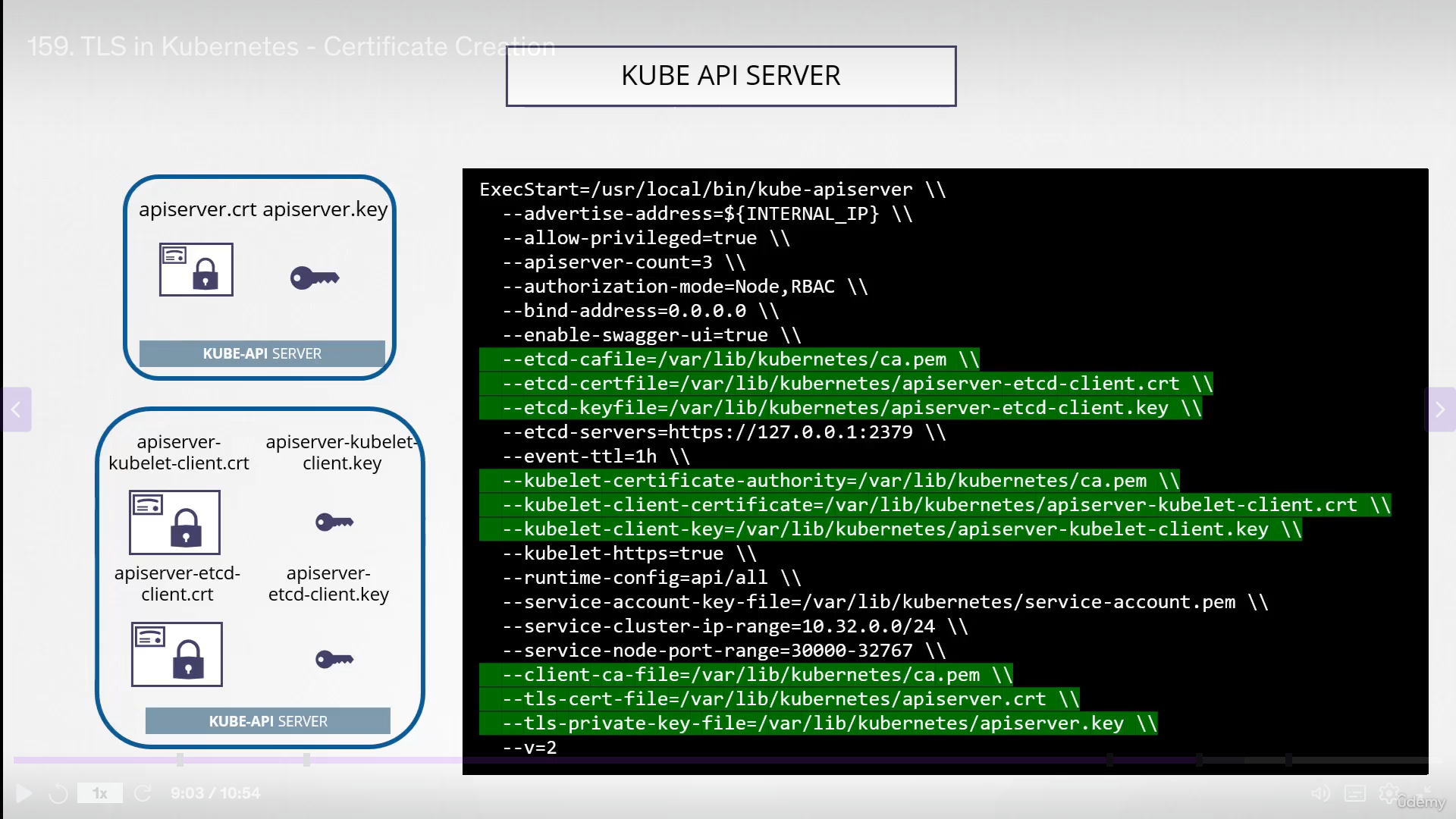

• In the executable used to configure kube-apiserver service configuration file :
  • acting as client to communicate with kubelet and etcd: ca file, crt, key
  • as server: ca file, cert and key

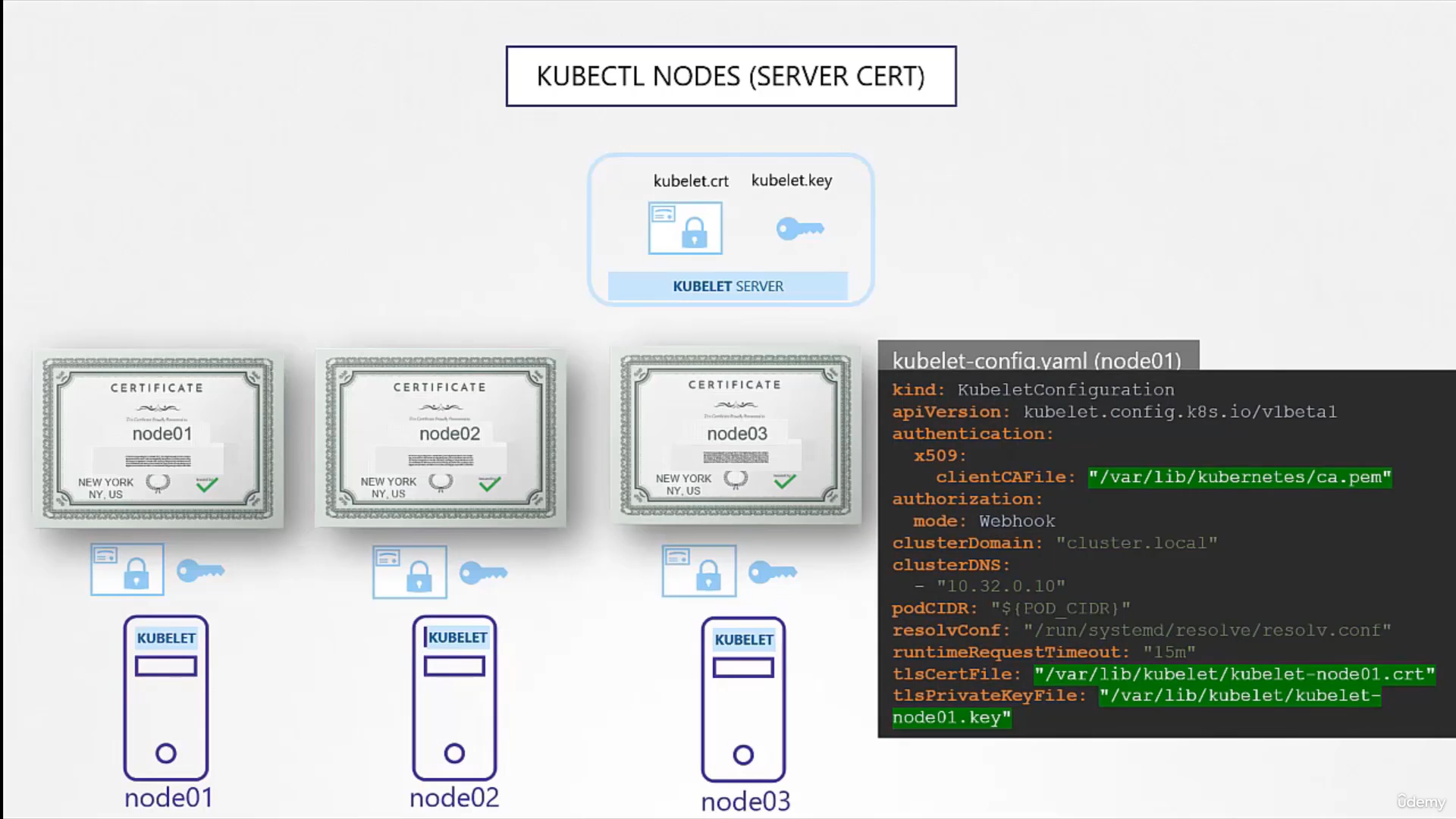

kubelet server

• https server that runs on each node, responsible for managing the node
• Each node should have its own kube-let.config with the ca file, the certificate, and the key

  How to use cert?

1. To authenticate with kube-api server

curl https://kube-apiserver:6443/api/v1/pods \
--key admin.key  --cert admin.crt --cacert ca.crt

1. Use them in kube-config.yaml

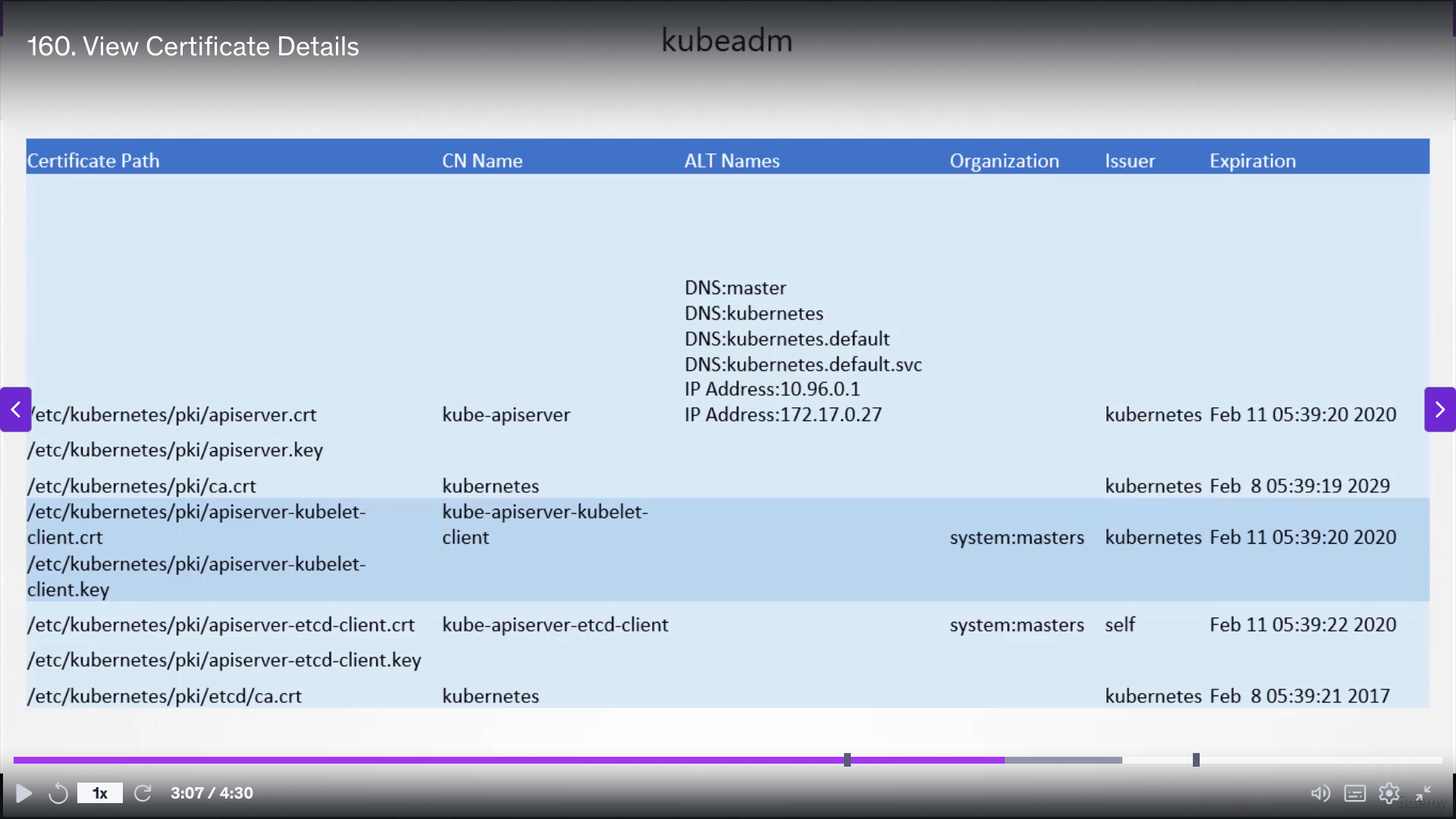

View Cert

openssl x509 in /etc/kubernetes/pki/apiserver.crt -text -noout

Healthcheck

• Using journalctl :journalctl -u etcd.service -l
• kubectl log etcd-master
• When kube-api-server and kubelet is down, follow procedure to check docker container
